Eclipse Mesh Panel

Product Code: EMP

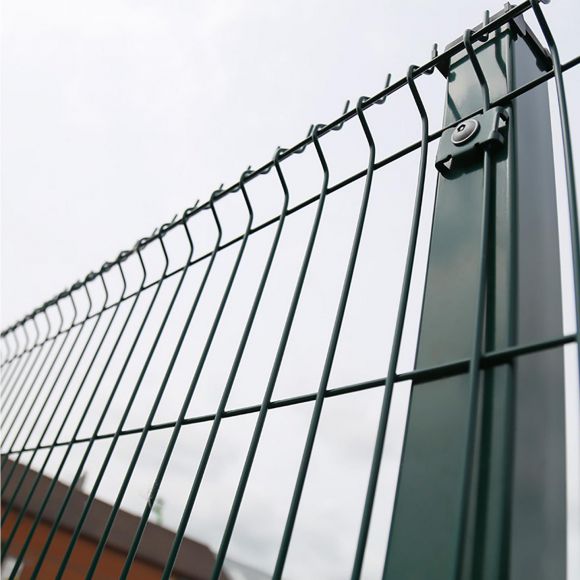

The eclipse mesh panel fence is an aesthetically pleasing security solution, ideal for commercial and industrial applications.

An economical version of the exempla mesh fencing panels, the mesh panels are constructed from a welded steel with longitudinal profiles that form a rigid wire mesh fence. These high quality fencing panels can be fitted to both standard section steel posts and purpose made posts.

Panel dimensions

Heights 1730 mm, 1930 mm, 2330 mm, 3000 mm
Panel width 2500 mm or 3000 mm
Mesh size 200 mm x 55 mm
Wire diameter 5 mm nominal after coating
Triangular folds 3 or 4
Top edge projection 30 mm †

† Can be inverted to give flush edge.


After stringent cleaning and treatment, our welded steel wire mesh fencing panels are galvanised and polyester powder-coated to give a high adhered coating in green RAL 6005 (full spectrum of colours available subject to quantity and price).

Contact us for more information

Gates manufactured to match the mesh panel fencing range are available in single or double leaf, these come as standars with a slide catch. Other lock options are available.
