Multiplus Mesh Panel

Product Code: MMP

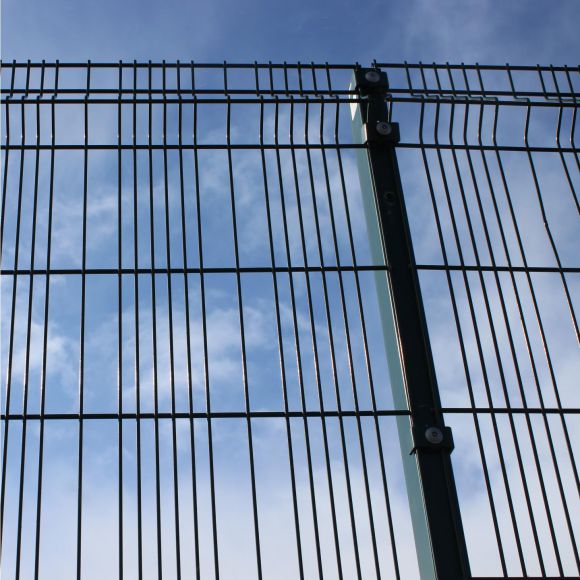

Strong and versatile with an attractive appearance, the multiplus mesh panel fencing offers excellent levels of security.

The welded mesh panels feature longitudinal profiles to form a rigid fence that is difficult to scale.

The mesh configuration is 6 mm diameter with horizontal wires at 200 mm centres and 4 mm vertical wires at 45 mm centres, followed by a group of 6 wires at 15 mm centres. This gives your perimeter security fencing an asthetically pleasing striped effect.

Panel Dimensions

Heights 1800 mm, 2000 mm, 2400 mm
Panel width 3000 mm
Mesh size 200 mm x 45 mm (200 mm x 15 mm)
Wire diameter 4 mm verticals 6 mm horizontals
Triangular folds 3 or 4


The multiplus perimeter security fence panels are galvanised and polyester powder-coated, following stringent cleaning and treatment, to give a well adhered coating of 60 microns. Available in a RAL range of colours.

Contact us for more information

Gates manufactured to match the mesh panel fencing range are available in single or double leaf, these come as standars with a slide catch. Other lock options are available.
